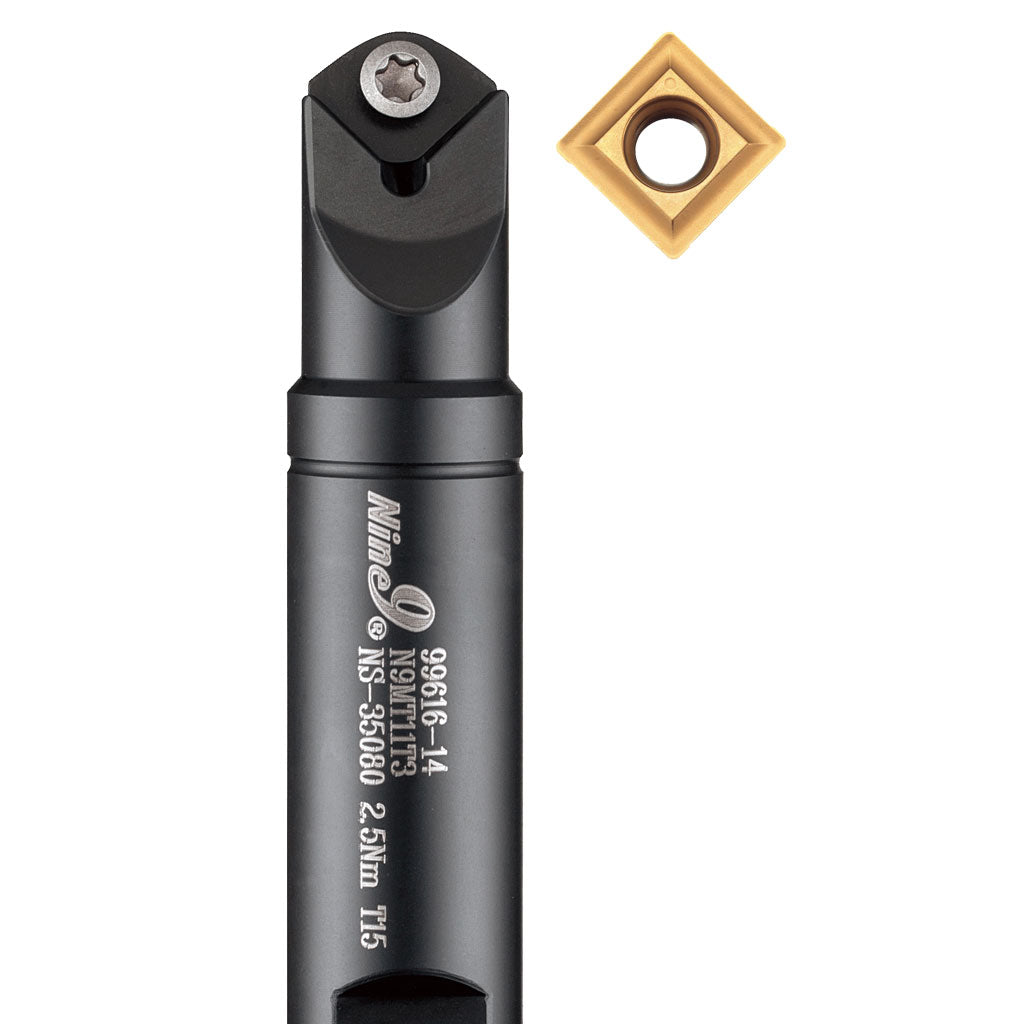

Nine9 NC Spot Drill 90° Indexable Tool – Holder & Insert Set
The Nine9 NC Spot Drill 90° Single Set is a complete, ready-to-use solution supplied with holder and insert included under a single part number. Designed to simplify tool selection and accelerate installation, this set makes it easy to get indexable tooling onto the machine quickly.

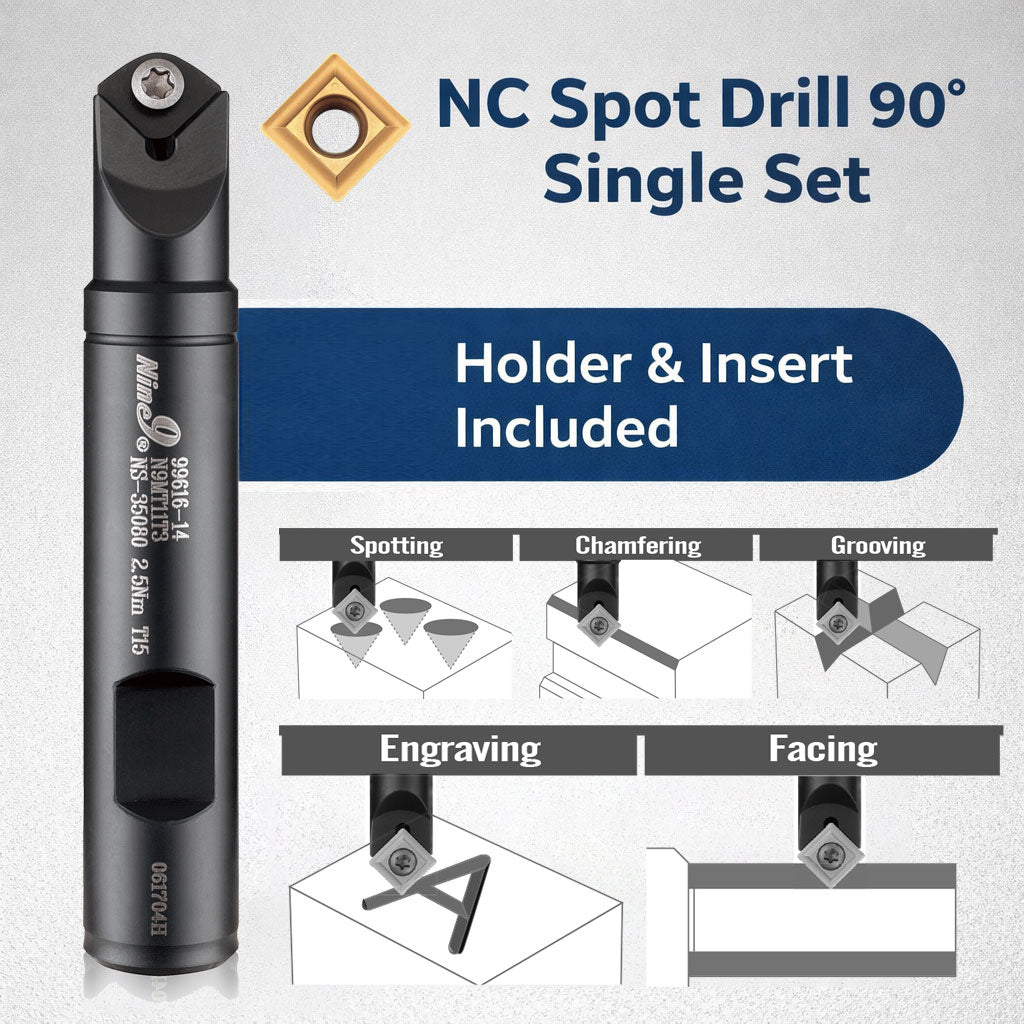

Suitable for CNC lathes, CNC turning centres and machining centres, this multi-functional indexable tool performs spotting, chamfering, grooving, engraving and facing operations with one holder. The single-set format eliminates the need to select components separately, reducing setup time and simplifying purchasing.
Featuring a high positive ground cutting edge and relief angle, the NC Spot Drill delivers efficient cutting performance across carbon steel, alloy steel and cast iron. Each insert provides four cutting edges, supporting long tool life, reduced cost per edge and ongoing insert consumption once the tool is in use.
-
Holder and insert included – ready to cut
-
Multi-functional indexable tool
-
Performs spotting, chamfering, grooving, engraving and facing
-
High positive cutting geometry
-
Universal grade for carbon steel, alloy steel and cast iron
-
Four cutting edges per insert
-
Suitable for CNC lathes, turning centres and machining centres
Technical Specifications
Tool Type: NC Spot Drill
Angle: 90°
Diameter: Ø16
Overall Length: 100
Dmax: 14
Tmax: 7
Insert: N9MT11T3CT-NC40
Holder: 99616-14
