Corner rounding is one of those machining operations that looks simple, but can quickly become a headache in production.
One job needs a small radius.
The next part needs something larger.
Another component needs a clean contour edge.
Then there’s the extra time spent removing sharp edges or touching up parts by hand.
Before long, a simple edge-finishing job can turn into multiple tools, extra setup time, more tool length checks, and slower cycle times.

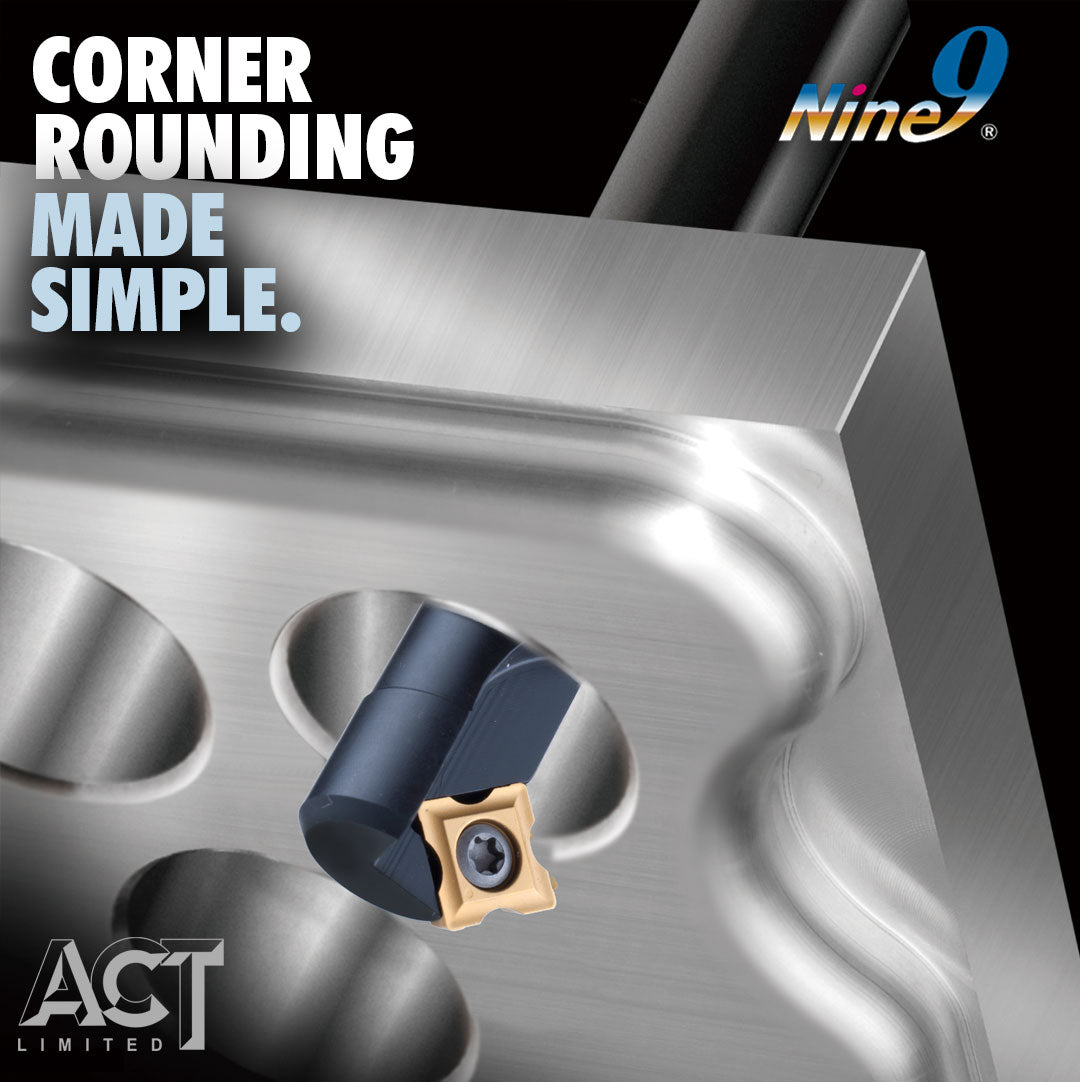

The Nine9 Corner Rounding system is designed to make that process easier.
Corner rounding without the tooling headache
The idea behind the system is simple:
Use one holder system with different replaceable radius inserts.
Instead of using a separate solid tool for every radius, Nine9 Corner Rounding uses indexable carbide inserts. Different corner radius inserts can fit on the same holder, helping reduce tool inventory and simplify setup. The ACT range covers corner radii from 0.5mm to 6.0mm, making it suitable for a wide range of edge-finishing applications.
For machine shops working across varied components, that flexibility is the main advantage. You are not just buying one radius cutter. You are creating a more adaptable corner rounding setup.
Why corner rounding matters
A clean radius is not just about appearance.
Corner rounding can help to:
Reduce sharp edges before handling or assembly
Improve the visual finish of machined components
Reduce manual deburring
Create more consistent edges from part to part
Prepare components for coating, plating, or finishing
Improve the feel and quality of finished parts
When edge finishing is done manually, results can vary from operator to operator. When it is machined using a repeatable tooling system, the process becomes more controlled and consistent.
One holder, multiple radius options
Nine9’s Corner Rounding system is built around flexibility. The key benefit is that various corner radius inserts can fit on the same holder, reducing the need for a separate holder for every radius.
That is particularly useful for subcontract machine shops, toolrooms, and manufacturers who regularly move between different jobs and different radius requirements.
Instead of treating corner rounding as a separate problem each time, you can build it into your machining process more efficiently.
RC type: corner rounding and 45° chamfering
The RC type inserts are designed for corner rounding, but they also offer an additional advantage: they can combine corner rounding and 45° chamfering on the same insert.
That gives you more flexibility from one tool position.
For example, if a component needs both a radius and a chamfered edge, the right insert selection may help reduce the need for extra tooling or additional operations.
The RC type also features a very small X offset, with ACT highlighting a 1.25mm X offset for radius 0.5mm, which helps when profiling in small corners.
R type: front and back corner rounding
Nine9 also offers R type inserts for front and back chamfering, with each insert providing four cutting edges.
This is useful when access to both sides of an edge matters, or when you want to reduce secondary deburring operations.
For production environments, being able to machine front and back edges more efficiently can make a noticeable difference to cycle time and part consistency.
Smooth surface finish from CNC-ground inserts
Nine9 Corner Rounding inserts are CNC ground for precision radius location, helping deliver long tool life and accurate, repeatable performance. The system is designed to produce a smooth surface finish on the workpiece, making it suitable for components where edge quality and appearance matter.
This is especially valuable on parts where a visible edge needs to look clean straight off the machine.
A well-machined radius can reduce the need for bench work and help the finished component look more professional.
Higher cutting speed and feed rate
Nine9 highlights higher cutting speed and feed rate as one of the benefits of the Corner Rounding system.
That matters because corner rounding is often seen as a finishing detail, but finishing details still affect total cycle time.
If you can machine the edge cleanly, consistently, and efficiently, you reduce the time spent correcting parts after machining.
Where this system fits best
The Nine9 Corner Rounding range is well suited to:
CNC milling
Machining centres
Subcontract machining
Precision components
General engineering
Motorsport and aerospace components
Medical and high-value machined parts
Parts that need consistent edge finishing
Jobs where manual deburring is taking too long
It is particularly useful when you regularly need different radius sizes but want to keep your tooling setup as simple as possible.
The practical benefit for machine shops
The biggest advantage is not just the radius itself.
It is the time saved across the whole process.
With the right corner rounding setup, you can reduce:
Tool changes
Manual deburring
Tool inventory
Setup time
Edge inconsistency
Secondary finishing work
For busy machine shops, those small savings add up quickly.
UK supply and support from ACT
Advanced Carbide Tooling are the UK’s exclusive distributor of Nine9 Corner Rounding, offering inserts, holders, and technical data for the range.
That means customers can get support with radius selection, holder compatibility, and choosing the right insert type for the material and application.
Final thoughts
Corner rounding may be a small part of the machining process, but it has a big impact on the finished component.
A clean, consistent radius improves appearance, reduces sharp edges, and helps cut down on manual deburring. With the Nine9 Corner Rounding system, machine shops can handle multiple radius requirements using a more flexible, indexable tooling approach.
One holder. Multiple radii. Cleaner edges. Less downtime.
That is a smarter way to finish the job.
