Why Indexable Center Drilling Improves Grinding Accuracy and Reduces Setup Time
In many machining processes, center drilling is treated as a routine step — but small inconsistencies in the center hole can quickly become larger problems later in the process.
In applications such as tap production, shaft grinding, precision components, and tool manufacturing, the center hole determines how accurately the part runs during grinding. Even minor variation can lead to run-out, reduced surface finish, and unnecessary setup adjustments.
For high-volume production environments, these small issues quickly translate into lost time, inconsistent parts, and increased tooling costs.
Why Traditional Center Drills Create Problems
Solid carbide or HSS center drills are widely used, but they come with a common limitation:
Every time the tool is replaced, the tool length must be reset.
Even when the operator is careful, small differences in tool position can lead to:
-
Variation in drilling depth
-
Inconsistent center positioning
-
Additional machine setup time
-
Increased risk of run-out during grinding
When this happens repeatedly during production, the process becomes less stable and harder to control.
The Indexable Alternative
Indexable center drilling was developed to eliminate these issues.

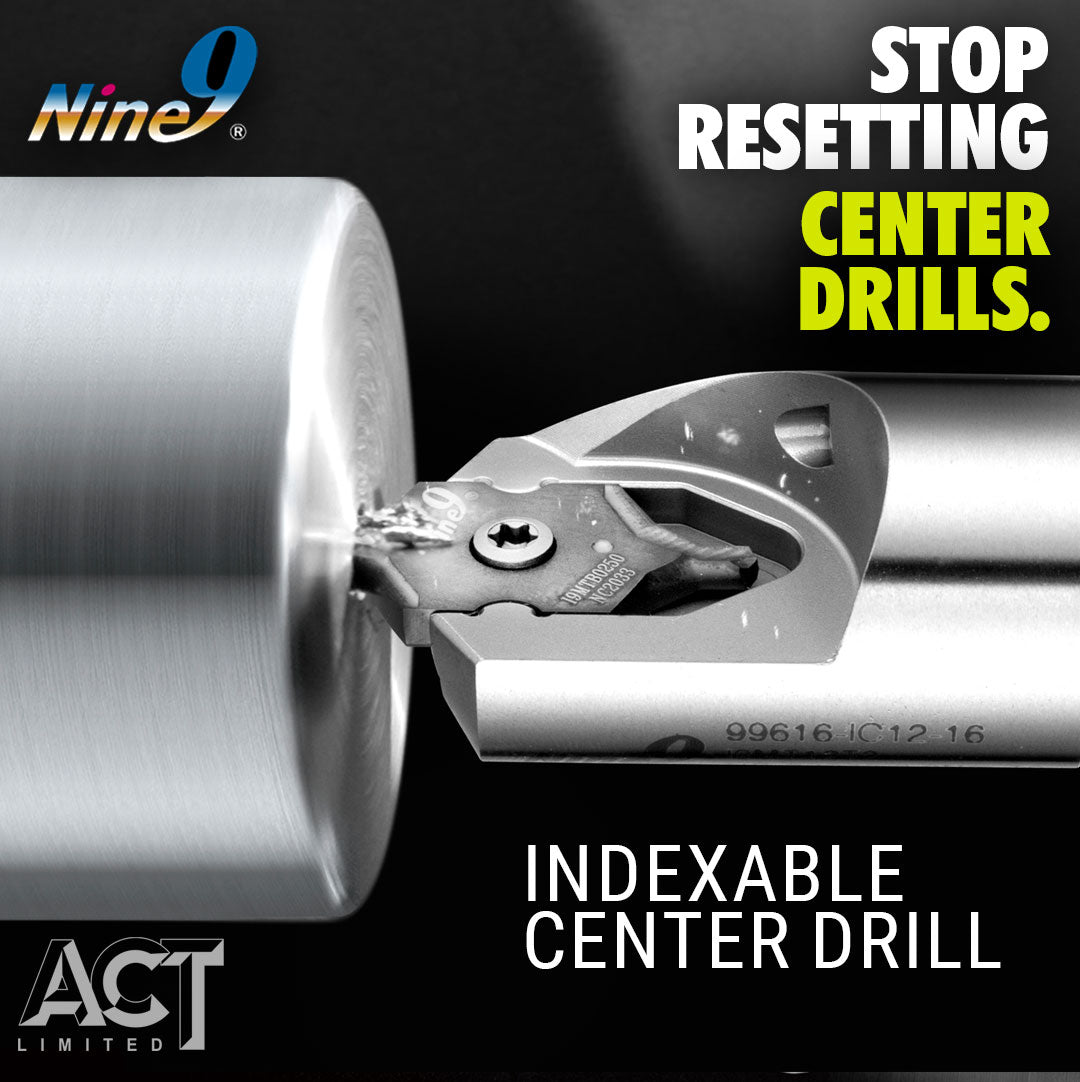

The Nine9 i-Center uses an indexable insert system that maintains accurate insert positioning, allowing operators to change cutting edges without resetting tool length.
This approach brings several practical advantages to the shop floor.
No Tool Length Resetting
One of the most valuable features is consistent axial positioning of the insert.
Because the insert location remains fixed, operators can replace inserts without adjusting the tool length offset.
In production environments this means:
-
Faster insert changes
-
Less machine downtime
-
Reduced setup variation between tools
Over long production runs, this alone can save a significant amount of time.
Improved Repeatability
Repeatable center positioning is critical when the next process step is grinding.
Indexable center drills provide very consistent insert positioning, which helps maintain the same center geometry from part to part.
For operations such as:
-
Tap manufacturing
-
Shaft grinding
-
Bearing production
-
Precision spindle components
this consistency helps improve grinding stability and overall process reliability.
Higher Productivity
The insert geometry and rigid holder design allow higher cutting speeds and feed rates compared with traditional center drills.
This means center drilling can be completed faster while maintaining stability, particularly in production machining environments.
When combined with reduced setup time, the overall process becomes significantly more efficient.
Longer Tool Life and Lower Tooling Costs
Another advantage of indexable tooling is simple:
Only the insert is replaced — not the entire tool.
This reduces tooling costs while maintaining consistent cutting performance.
Many users also benefit from through-coolant capability, which improves chip evacuation and extends tool life.
Why Center Drilling Still Matters
It’s easy to overlook center drilling as a simple operation, but it has a direct impact on the quality and stability of the entire machining process.
Consistent center holes help ensure:
-
Accurate grinding results
-
Stable part positioning
-
Reduced run-out
-
Better surface finish
Improving this one step often leads to improvements throughout the rest of the process.
Explore the Nine9 I-Center Range
If center drilling consistency or setup time is limiting your production efficiency, indexable center drilling may be worth considering.
You can explore the full range of Nine9 center drilling tools here:
https://advancedcarbidetooling.com/collections/centre-drilling
